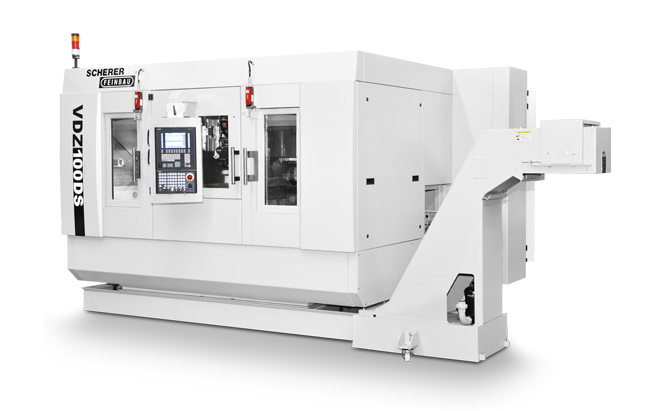

VDZ 100 and VDZ 100, DS type single spindle and double spindle CNC vertical lathe:

　　Special CNC vertical lathe has compact single axis VDZ type 100 and 100 type DS double spindle VDZ, minimum machining efficiency and machining precision, high machining space: high dynamic performance, fast speed, convenient operation, strong and free maintenance.

　　Stable polymer machine tool base

　　The polymer machine tool base tested by practice makes the machine's seismic performance very good, and the static dynamic rigidity is very high, so that the machine tool achieves very high precision.

　　Performance data of VDZ 100 and VDZ 100 DS CNC vertical lathes:

　　The structure is so compact that it takes up little space

　　The workpiece height is 100 mm with a diameter of 175 mm

　　Turning diameter 160 mm

　　Speed up to 7000 revolutions per minute

　　VDZ type 100 single spindle type lathe or machining efficiency doubling VDZ 100 DS type double spindle type lathe

　　Spindle bore 46 mm

　　? the most advanced synchronous drive motor, power 23 kW, rated torque of 130 Nm

　　Fast forward, up to 50 m/min

　　Tool length up to 180 mm (power knife or non powered knife)

　　The NC turret has 12 cutter positions - VDI 30, which is integrated into the base of the machine

　　Modular machine tool scheme, widely used

　　Select Y axis

　　? fast feeding and blanking by numerically controlled circular conveyors

　　The processing space is easy to access and has the location of auxiliary tools

　　There are glass rulers in each axle

　　? integration of "pick up" devices for two-sided / double processing
