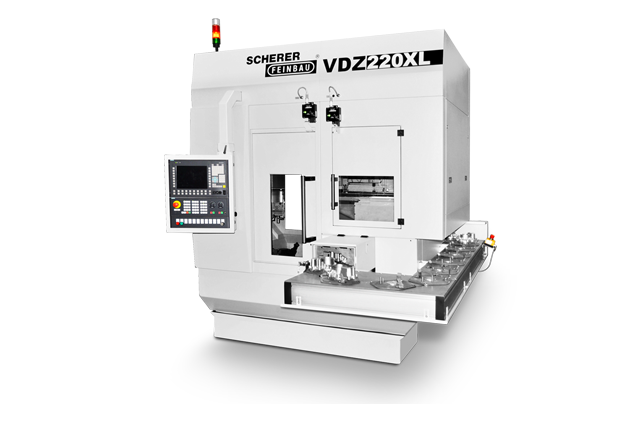

VDZ 220 and VDZ 220, DS type single spindle and double spindle CNC vertical lathe:

　　Modular machine tool for processing purpose so that we can according to the variety of group with various types of lathes: single shaft type VDZ 220 and VDZ 220 DS double spindle CNC vertical lathe has the processing performance of magic.

　　Dazzling array of matches

　　For the specific configuration of the client, a range of options can be provided: from turret machine tools to milling shafts, until special modules for turning spherical, milling, ball bearing, raceway and roller milling are available. An additional Y axis in the main spindle with a stroke of 200 mm is used for efficient machining.

　　Hydropol new type composite machine tool base

　　The Hydropol (special reinforced concrete) machine tool base ensures that the machine has excellent seismic performance and excellent static dynamic rigidity, so the machining accuracy of the machine tool is extremely high.

　　Performance data of VDZ 220 and VDZ 220 DS CNC vertical lathes:

　　The structure is very compact and occupies little space

　　The workpiece height is 200 mm with a diameter of 250 mm

　　Turning diameter 260 mm

　　Speed up to 5500 revolutions per minute

　　VDZ type 220 single spindle type lathe or machining efficiency doubling VDZ 220 DS type double spindle type lathe

　　Spindle bore 75 mm

　　? the most advanced synchronous drive motor, power 38 kW, rated torque of 300 Nm

　　Fast forward, up to 60 m/min

　　Tool length up to 240 mm (power knife or non powered knife)

　　The NC turret has 12 cutter positions - VDI 40, which is integrated into the base of the machine

　　Modular machine tool scheme, widely used

　　Matching the Y axis with a stroke of 200 mm

　　? fast feeding and blanking by numerically controlled circular conveyors

　　The processing space is easy to access and has the location of auxiliary tools

　　There are glass rulers in each axle

　　? integration of "pick up" devices for two-sided / double processing
